上海拓起起重设备有限公司
-

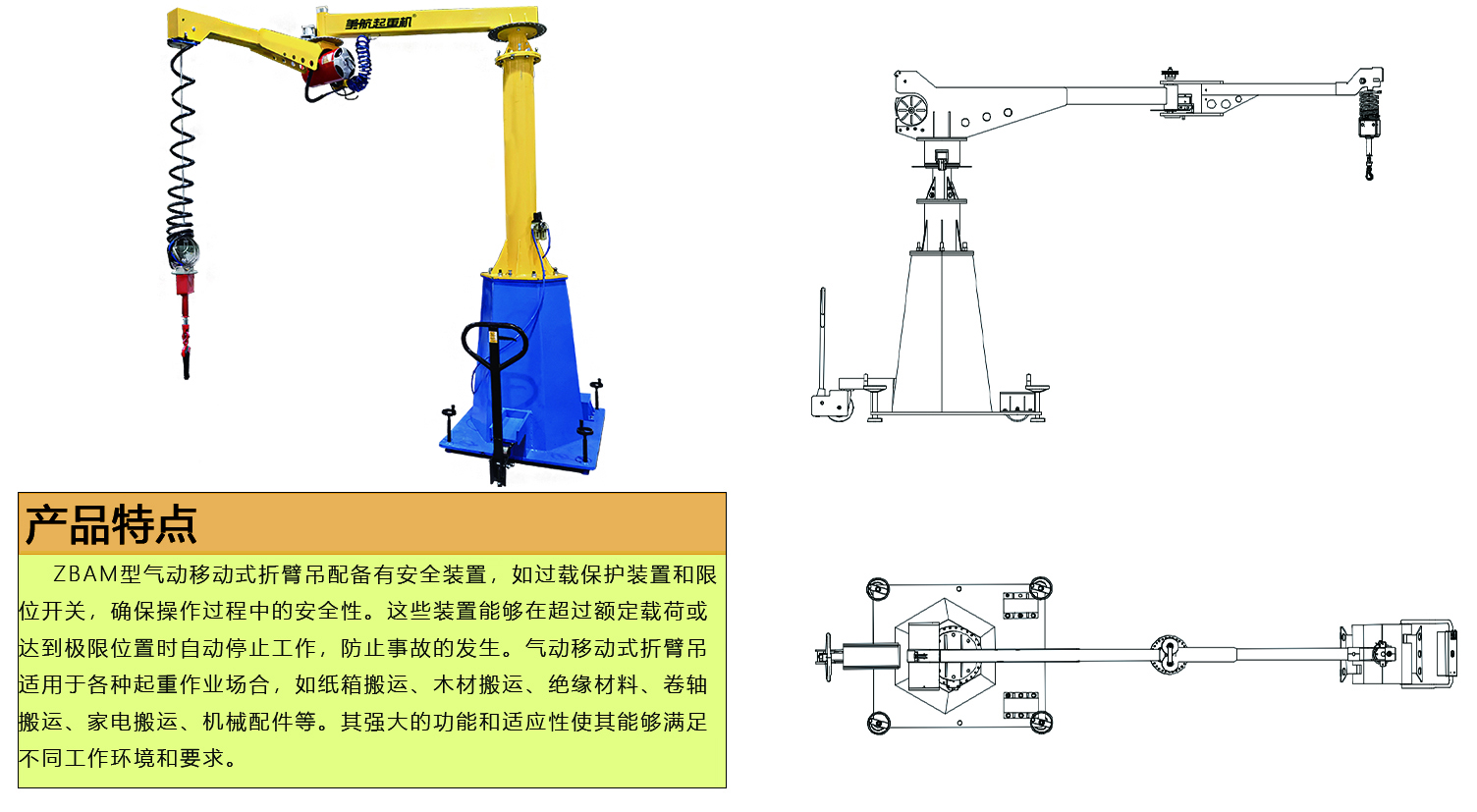

产品特性
产品参数

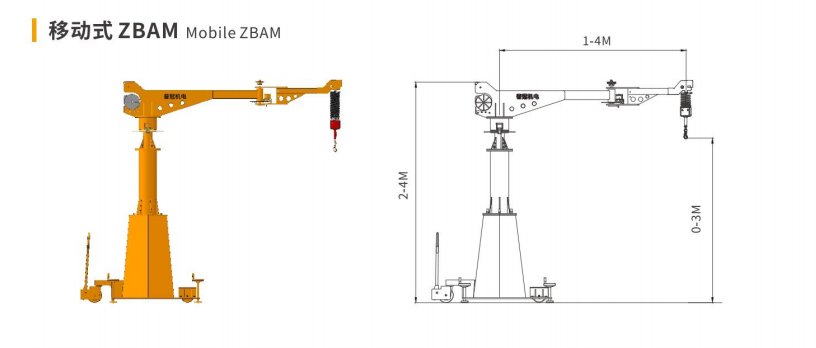

产品图纸
| Capacity (kg) | 80kg | 150kg | 300kg | 500kg |
| Product Code | ZBAM80 | ZBAM150 | ZBAM300 | ZBAM500 |
| Beam Material | H-Beam /I-Beam | H-Beam /I-Beam | H-Beam /I-Beam | H-Beam /I-Beam |
| Type | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Rotation Mode | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Rotation Radius (m) | 1+1.5-2.2+1.8 | 1+1.5-2.2+1.8 | 1+1.5-2.2+1.8 | 1+1.5-2.2+1.8 |
| Lifting Height (m) | 2-4m | 2-4m | 2-4m | 2-4m |
| Effective Height (m) | 2.5m | 2.5m | 2.5m | 2.5m |
| Rotation angle (°) | 270° | 270° | 270° | 270° |
| Lifting Speed (m/min) | 6.75 | 6.75 | 6.75 | 6.75 |
